The IPv6 subnet

Until now, we have focussed our discussion on the utilisation of IPv6 on point-to-point links. Although there are point-to-point links in the Internet, mainly between routers and sometimes for endhosts, most of the endhosts are attached to datalink layer networks such as Ethernet LANs or WiFi networks. These datalink layer networks play an important role in today’s Internet and have heavily influenced the design of the operation of IPv6. To understand IPv6 and ICMPv6 completely, we first need to correctly understand the key principles behind these datalink layer technologies.

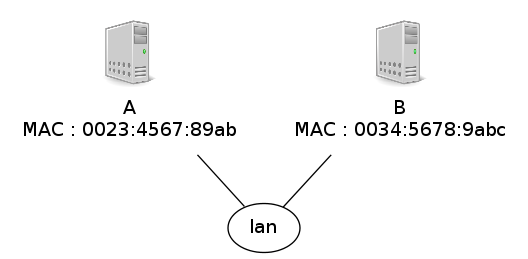

As explained earlier, devices attached to a Local Area Network can directly exchange frames among themselves. For this, each datalink layer interface on a device (endhost, router, ...) attached to such a network is identified by a MAC address. Each datalink layer interface includes a unique hardwired MAC address. MAC addresses are allocated to manufacturers in blocks and interface is numbered with a unique address. Thanks to the global unicity of the MAC addresses, the datalink layer service can assume that two hosts attached to a LAN have different addresses. Most LANs provide an unreliable connectionless service and a datalink layer frame has a header containing :

  • the source MAC address
  • the destination MAC address
  • some multiplexing information to indicate the network layer protocol that is responsible for the payload of the frame

LANs also provide a broadcast and a multicast service. The broadcast service enables a device to send a single frame to all the devices attached to the same LAN. This is done by reserving a special broadcast MAC address (typically all bits of the address are set to one). To broadcast a frame, a device simply needs to send a frame whose destination is the broadcast address. All devices attached to the datalink network will receive the frame.

The broadcast service allows to easily reach all devices attached to a datalink layer network. It has been widely used to support IP version 4. A drawback of using the broadcast service to support a network layer protocol is that a broadcast frame that contains a network layer packet is always delivered to all devices attached to the datalink network, even if some of these devices do not support the network layer protocol. The multicast service is a useful alternative to the broadcast service. To understand its operation, it is important to understand how a datalink layer interface operates. In shared media LANs, all devices are attached to the same physical medium and all frames are delivered to all devices. When such a frame is received by a datalink layer interface, it compares the destination address with the MAC address of the device. If the two addresses match, or the destination address is the broadcast address, the frame is destined to the device and its payload is delivered to the network layer protocol. The multicast service exploits this principle. A multicast address is a logical address. To receive frames destined to a multicast address in a shared media LAN, a device captures all frames having this multicast address as their destination. All IPv6 nodes are capable of capturing datalink layer frames destined to different multicast addresses.
