Services and protocols

An important aspect to understand before studying computer networks is the difference between a service and a protocol.

In order to understand the difference between the two, it is useful to start with real world examples. The traditional Post provides a service where a postman delivers letters to recipients. The Post defines precisely which types of letters (size, weight, etc) can be delivered by using the Standard Mail service. Furthermore, the format of the envelope is specified (position of the sender and recipient addresses, position of the stamp). Someone who wants to send a letter must either place the letter at a Post Office or inside one of the dedicated mailboxes. The letter will then be collected and delivered to its final recipient. Note that for the regular service the Post usually does not guarantee the delivery of each particular letter, some letters may be lost, and some letters are delivered to the wrong mailbox. If a letter is important, then the sender can use the registered service to ensure that the letter will be delivered to its recipient. Some Post services also provide an acknowledged service or an express mail service that is faster than the regular service.

In computer networks, the notion of service is more formally defined in [X200] . It can be better understood by considering a computer network, whatever its size or complexity, as a black box that provides a service to users , as shown in the figure below. These users could be human users or processes running on a computer system.

Users and service provider

Many users can be attached to the same service provider. Through this provider, each user must be able to exchange messages with any other user. To be able to deliver these messages, the service provider must be able to unambiguously identify each user. In computer networks, each user is identified by a unique address, we will discuss later how these addresses are built and used. At this point, and when considering unicast transmission, the main characteristic of these addresses is that they are unique. Two different users attached to the network cannot use the same address.

Throughout this book, we will define a service as a set of capabilities provided by a system (and its underlying elements) to its user. A user interacts with a service through a service access point. Note that as shown in the figure above, users interact with one service provider. In practice, the service provider is distributed over several hosts, but these are implementation details that are not important at this stage. These interactions between a user and a service provider are expressed in [X200] by using primitives, as show in the figure below. These primitives are an abstract representation of the interactions between a user and a service provider. In practice, these interactions could be implemented as system calls for example.

The four types of primitives

Four types of primitives are defined :

  • X.request. This type of primitive corresponds to a request issued by a user to a service provider
  • X.indication. This type of primitive is generated by the network provider and delivered to a user (often related to an earlier and remote X.request primitive)
  • X.response. This type of primitive is generated by a user to answer to an earlier X.indication primitive
  • X.confirm. This type of primitive is delivered by the service provide to confirm to a user that a previous X.request primitive has been successfully processed.

Primitives can be combined to model different types of services. The simplest service in computer networks is called the connectionless service [1]. This service can be modelled by using two primitives :

  • Data.request(source,destination,SDU). This primitive is issued by a user that specifies, as parameters, its (source) address, the address of the recipient of the message and the message itself. We will use Service Data Unit (SDU) to name the message that is exchanged transparently between two users of a service.
  • Data.indication(source,destination,SDU). This primitive is delivered by a service provider to a user. It contains as parameters a Service Data Unit as well as the addresses of the sender and the destination users.

When discussing the service provided in a computer network, it is often useful to be able to describe the interactions between the users and the provider graphically. A frequently used representation is the time-sequence diagram. In this chapter and later throughout the book, we will often use diagrams such as the figure below. A time-sequence diagram describes the interactions between two users and a service provider. By convention, the users are represented in the left and right parts of the diagram while the service provider occupies the middle of the diagram. In such a time-sequence diagram, time flows from the top, to the bottom of the diagram. Each primitive is represented by a plain horizontal arrow, to which the name of the primitive is attached. The dashed lines are used to represent the possible relationship between two (or more) primitives. Such a diagram provides information about the ordering of the different primitives, but the distance between two primitives does not represent a precise amount of time.

The figure below provides a representation of the connectionless service as a time-sequence diagram. The user on the left, having address S, issues a Data.request primitive containing SDU M that must be delivered by the service provider to destination D. The dashed line between the two primitives indicates that the Data.indication primitive that is delivered to the user on the right corresponds to the Data.request primitive sent by the user on the left.

A simple connectionless service

There are several possible implementations of the connectionless service, which we will discuss later in this book. Before studying these realisations, it is useful to discuss the possible characteristics of the connectionless service. A reliable connectionless service is a service where the service provider guarantees that all SDUs submitted in Data.requests by a user will eventually be delivered to their destination. Such a service would be very useful for users, but guaranteeing perfect delivery is difficult in practice. For this reason, computer networks usually support an unreliable connectionless service.

An unreliable connectionless service may suffer from various types of problems compared to a reliable connectionless service. First of all, an unreliable connectionless service does not guarantee the delivery of all SDUs. This can be expressed graphically by using the time-sequence diagram below.

An unreliable connectionless service may loose SDUs

In practice, an unreliable connectionless service will usually deliver a large fraction of the SDUs. However, since the delivery of SDUs is not guaranteed, the user must be able to recover from the loss of any SDU.

A second imperfection that may affect an unreliable connectionless service is that it may duplicate SDUs. Some unreliable connectionless service providers may deliver an SDU sent by a user twice or even more. This is illustrated by the time-sequence diagram below.

An unreliable connectionless service may duplicate SDUs

Finally, some unreliable connectionless service providers may deliver to a destination a different SDU than the one that was supplied in the Data.request. This is illustrated in the figure below.

An unreliable connectionless service may deliver erroneous SDUs

When a user interacts with a service provider, it must precisely know the limitations of the underlying service to be able to overcome any problem that may arise. This requires a precise definition of the characteristics of the underlying service.

Another important characteristic of the connectionless service is whether it preserves the ordering of the SDUs sent by one user. From the user’s viewpoint, this is often a desirable characteristic. This is illustrated in the figure below.

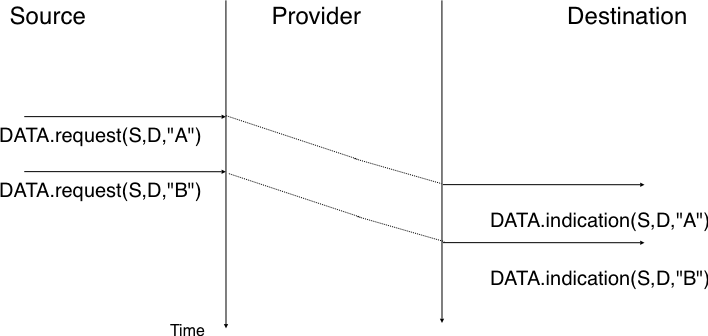

A connectionless service that preserves the ordering of SDUs sent by a given user

However, many connectionless services, and in particular the unreliable services, do not guarantee that they will always preserve the ordering of the SDUs sent by each user. This is illustrated in the figure below.

A connectionless service that does not preserve the ordering of SDUs sent by a given user

The connectionless service is widely used in computer networks as we will see later in this book. Several variations to this basic service have been proposed. One of these is the confirmed connectionless service. This service uses a Data.confirm primitive in addition to the classical Data.request and Data.indication primitives. This primitive is issued by the service provider to confirm to a user the delivery of a previously sent SDU to its recipient. Note that, like the registered service of the post office, the Data.confirm only indicates that the SDU has been delivered to the destination user. The Data.confirm primitive does not indicate whether the SDU has been processed by the destination user. This confirmed connectionless service is illustrated in the figure below.

A confirmed connectionless service

The connectionless service we have described earlier is frequently used by users who need to exchange small SDUs. Users needing to either send or receive several different and potentially large SDUs, or who need structured exchanges often prefer the connection-oriented service.

An invocation of the connection-oriented service is divided into three phases. The first phase is the establishment of a connection. A connection is a temporary association between two users through a service provider. Several connections may exist at the same time between any pair of users. Once established, the connection is used to transfer SDUs. Connections usually provide one bidirectional stream supporting the exchange of SDUs between the two users that are associated through the connection. This stream is used to transfer data during the second phase of the connection called the data transfer phase. The third phase is the termination of the connection. Once the users have finished exchanging SDUs, they request to the service provider to terminate the connection. As we will see later, there are also some cases where the service provider may need to terminate a connection itself.

The establishment of a connection can be modelled by using four primitives : Connect.request, Connect.indication, Connect.response and Connect.confirm. The Connect.request primitive is used to request the establishment of a connection. The main parameter of this primitive is the address of the destination user. The service provider delivers a Connect.indication primitive to inform the destination user of the connection attempt. If it accepts to establish a connection, it responds with a Connect.response primitive. At this point, the connection is considered to be open and the destination user can start sending SDUs over the connection. The service provider processes the Connect.response and will deliver a Connect.confirm to the user who initiated the connection. The delivery of this primitive terminates the connection establishment phase. At this point, the connection is considered to be open and both users can send SDUs. A successful connection establishment is illustrated below.

Connection establishment

The example above shows a successful connection establishment. However, in practice not all connections are successfully established. One reason is that the destination user may not agree, for policy or performance reasons, to establish a connection with the initiating user at this time. In this case, the destination user responds to the Connect.indication primitive by a Disconnect.request primitive that contains a parameter to indicate why the connection has been refused. The service provider will then deliver a Disconnect.indication primitive to inform the initiating user. A second reason is when the service provider is unable to reach the destination user. This might happen because the destination user is not currently attached to the network or due to congestion. In these cases, the service provider responds to the Connect.request with a Disconnect.indication primitive whose reason parameter contains additional information about the failure of the connection.

Two types of rejection for a connection establishment attempt

Once the connection has been established, the service provider supplies two data streams to the communicating users. The first data stream can be used by the initiating user to send SDUs. The second data stream allows the responding user to send SDUs to the initiating user. The data streams can be organised in different ways. A first organisation is the message-mode transfer. With the message-mode transfer, the service provider guarantees that one and only one Data.indication will be delivered to the endpoint of the data stream for each Data.request primitive issued by the other endpoint. The message-mode transfer is illustrated in the figure below. The main advantage of the message-transfer mode is that the recipient receives exactly the SDUs that were sent by the other user. If each SDU contains a command, the receiving user can process each command as soon as it receives a SDU.

Message-mode transfer in a connection oriented service

Unfortunately, the message-mode transfer is not widely used on the Internet. On the Internet, the most popular connection-oriented service transfers SDUs in stream-mode. With the stream-mode, the service provider supplies a byte stream that links the two communicating users. The sending user sends bytes by using Data.request primitives that contain sequences of bytes as SDUs. The service provider delivers SDUs containing consecutive bytes to the receiving user by using Data.indication primitives. The service provider ensures that all the bytes sent at one end of the stream are delivered correctly in the same order at the other endpoint. However, the service provider does not attempt to preserve the boundaries of the SDUs. There is no relation enforced by the service provider between the number of Data.request and the number of Data.indication primitives. The stream-mode is illustrated in the figure below. In practice, a consequence of the utilisation of the stream-mode is that if the users want to exchange structured SDUs, they will need to provide the mechanisms that allow the receiving user to separate successive SDUs in the byte stream that it receives. As we will see in the next chapter, application layer protocols often use specific delimiters such as the end of line character to delineate SDUs in a bytestream.

Stream-mode transfer in a connection oriented service

The third phase of a connection is when it needs to be released. As a connection involves three parties (two users and one service provider), any of them can request the termination of the connection. Usually, connections are terminated upon request of one user once the data transfer is finished. However, sometimes the service provider may be forced to terminate a connection. This can be due to lack of resources inside the service provider or because one of the users is not reachable anymore through the network. In this case, the service provider will issue Disconnect.indication primitives to both users. These primitives will contain, as parameter, some information about the reason for the termination of the connection. Unfortunately, as illustrated in the figure below, when a service provider is forced to terminate a connection it cannot guarantee that all SDUs sent by each user have been delivered to the other user. This connection release is said to be abrupt as it can cause losses of data.

Abrupt connection release initiated by the service provider

An abrupt connection release can also be triggered by one of the users. If a user needs, for any reason, to terminate a connection quickly, it can issue a Disconnect.request primitive and to request an abrupt release. The service provider will process the request, stop the two data streams and deliver the Disconnect.indication primitive to the remote user as soon as possible. As illustrated in the figure below, this abrupt connection release may cause losses of SDUs.

Abrupt connection release initiated by a user

To ensure a reliable delivery of the SDUs sent by each user over a connection, we need to consider the two streams that compose a connection as independent. A user should be able to release the stream that it uses to send SDUs once it has sent all the SDUs that it planned to send over this connection, but still continue to receive SDUs over the opposite stream. This graceful connection release is usually performed as shown in the figure below. One user issues a Disconnect.request primitive to its provider once it has issued all its Data.request primitives. The service provider will wait until all Data.indication primitives have been delivered to the receiving user before issuing the Disconnnect.indication primitive. This primitive informs the receiving user that it will no longer receive SDUs over this connection, but it is still able to issue Data.request primitives on the stream in the opposite direction. Once the user has issued all of its Data.request primitives, it issues a Disconnnect.request primitive to request the termination of the remaining stream. The service provider will process the request and deliver the corresponding Disconnect.indication to the other user once it has delivered all the pending Data.indication primitives. At this point, all data has been delivered and the two streams have been released successfully and the connection is completely closed.

Graceful connection release


Reliability of the connection-oriented service

An important point to note about the connection-oriented service is its reliability. A connection-oriented service can only guarantee the correct delivery of all SDUs provided that the connection has been released gracefully. This implies that while the connection is active, there is no guarantee for the actual delivery of the SDUs exchanged as the connection may need to be released abruptly at any time.
